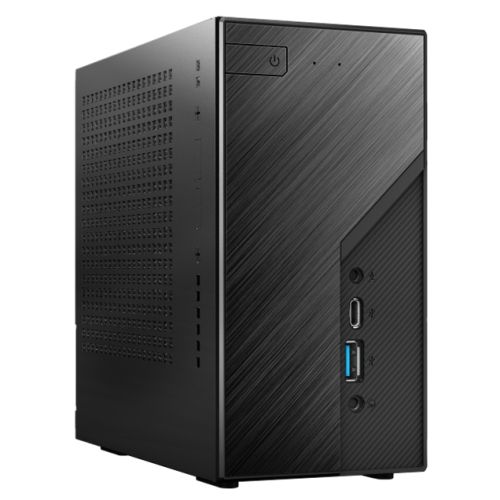

Asrock DeskMini X600/USB4 SFF Barebone PC, AMD AM5 (X600), 2x DDR5 SO-DIMM, 2x SATA, 2x M.2, HDMI, DP, USB4, 2.5G LAN - No CPU, RAM, Storage or O/S

Description

Specification

• #Hide#Fully Built / Barebone: Barebone
• Tower / Small Form Factor: Small Form Factor
• Chassis: Asrock DeskMini Mini STX
• Processor: None
• Processor Details: Supports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors
  Max. TDP 65W
  Support MAX Height 47mm CPU Cooler
• Chipset: AMD X600
• Graphics: "1 x HDMI 2.1 (4K@120Hz)
  1 x DisplayPort 1.4 (4K@120Hz)
  1 x USB4*

  *1 x Type-C with USB4 for Ryzen 8000G Series CPUs; with DP Alt mode for Ryzen 9000/7000 Series CPUs

  "
• #Hide#Processor: None
• Memory: None
• Memory Details: 2 x DDR5 SO-DIMM Slots
  DDR5 6400+(OC) MHz Memory
  Max. 96GB (non-ECC)
• Hard Drive: None
• SSD Drive: None
• Optical Drive: None
• Supported Drives: 2 x 2.5"" SATA III (7mm/9.5mm)
  M2_1 (2280) - PCIe 5.0 x4
  M2_2 (2280) - PCIe 4.0 x4
  Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• Operating System: No O/S
• Front I/O: 1 x MIC-In
  1 x USB 3.2 Gen1 Type-C
  1 x USB 3.2 Gen1 Type-A
  1 x Head Phone with MIC Jack
• Back I/O: 1 x DC-In Jack (Compatible with the 19V power adapter)
  1 x USB4
  2 x USB 3.2 Gen1 Type-A
  1 x RJ-45 LAN Port (2.5G)
• LAN: 2.5G LAN (Dragon RTL8125BG)
• Wireless: "1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module - sold separately"
• Bluetooth: -
• Sound: Realtek ALC269 Audio Codec
• Expansion: "1 x USB 2.0 Header
  1 x Front Panel Header
  2 x 4-Pin fan connectors (CPU, SYS)
  1 x Internal Speaker Header (4-Pin)
  1 x Chassis Intrusion Header (2-Pin)
  1 x Audio Header (4-Pin)"
• Power Unit: 1 x 120W/19V adapter
• Keyboard and Mouse: No
• Dimensions: 155 x 155 x 80 mm (1.92L)
• Additional Features: See Overview
• Accessories: 2 x SATA Data with Power Cable
  1 x 120W/19V adapter
  1 x Screws Pack
• Package Weight: 2.2000 kg
• Package Type: Retail
• Warranty: 2 Year Replacement Warranty
• #Hide#Memory: DDR5
