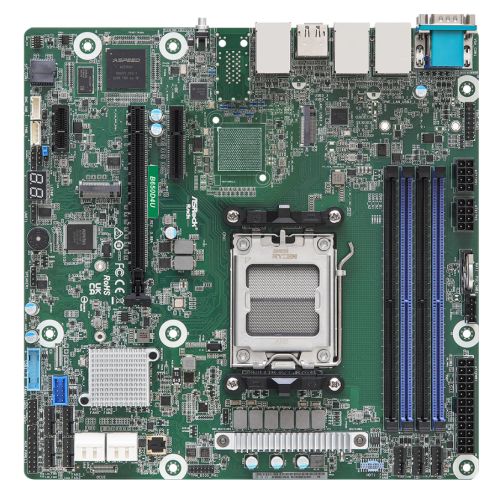

Asrock Rack B650D4U, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x GB LAN, IPMI Remote Management, PCIe5, 2x M.2

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD B650E
• #Hide#DDR Type: DDR5
• CPU Support: Supports AMD Ryzen 7000 series Processors
  Single Socket AM5 (LGA 1718)
  Up to 170W with proper cooling solution

  Click here for CPU support list
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: "5200MHz (1DPC); 3600MHz (2DPC)
  ECC/non-ECC UDIMM"
• Maximum Memory: 128GB
• Graphics: Yes
• Graphics Ports: "ASPEED AST2600:
  1 DB15 (VGA), 1 (15-pin) header

  AMD Processors with Graphics:
  1 HDMI, 1 DisplayPort"
• PCI/PCI Express: PCIe x 16 - SLOT6: PCIe5.0 x16 [CPU]
  PCIe x 4 - SLOT7: PCIe5.0 x4 [CPU]
  PCIe x 1 - SLOT4: PCIe4.0 x1 [FCH]
• Storage: "4 x SATA III
  1 x M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]
  1 x M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]"
• RAID: Yes
• LAN: Dual GB LAN & Dedicated IPMI LAN port
• USB Ports Supported: 4 x USB 3.2 Gen1 Type- A (at back)
• Back Panel I/O Ports: 1 x UID button w/ LED
  1 x DB15 (VGA)
  1 x DisplayPort
  1 x HDMI
  1 x Serial Port DB9
  4 x USB3.2 Gen1 Type-A
  2 x RJ45 (1GbE)
  1 x dedicated IPMI
• Internal I/O Connectors: "1 x 24-pin, ATX main power
  2 x 8-pin, ATX 12V
  1 x Auxiliary Panel Header (18-pin)
  1 x System Panel
  1 x VGA header
  1 x Speaker Header
  1 x Buzzer
  7 x Fan Header (6-pin)
  1 x TPM Header (13-pin, SPI)
  1 x SMBus header
  1 x PMBus header
  1 x IPMB Header"
• .: "1 x Clear CMOS
  1 x 3-pin, 80 debug port header"
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.2650 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: GB LAN
