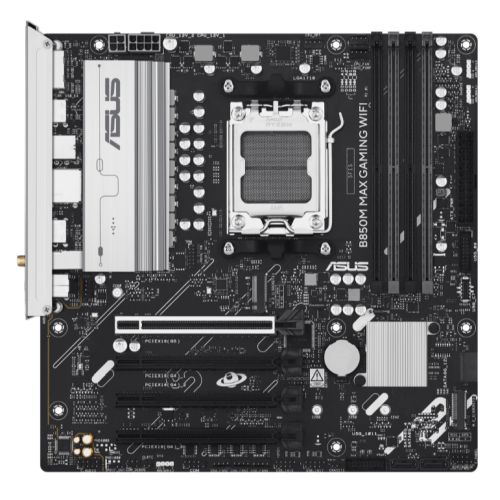

Asus B850M MAX GAMING WIFI, AMD B850, AM5, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, GB LAN, 3x M.2

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD B850
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  ECC and Non-ECC, Un-buffered Memory*
  Supports AMD EXPO
  ASUS Enhanced Memory Profile

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function."
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+MT/s(OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x HDMI
  1 x DisplayPOrt
• PCI/PCI Express: Ryzen 9000 & 7000 CPUs:
  1 x PCIe 5.0 x16 (supports x16 mode)
  3 x PCIe 4.0 x16 (support x1 mode)

  Ryzen 8000 CPUs:
  1 x PCIe 4.0 x16 (supports x8/x4 mode)
  3 x PCIe 4.0 x16 (support x1 mode)
• Storage: 4 x SATA III
  3 x M.2

  Ryzen 9000 & 7000 CPUs:
  M.2_1 (2280) - PCIe 5.0 x4

  Ryzen 8000 CPUs:
  M.2_1 (2280) - PCIe 4.0 x4

  X870E Chipset:
  M.2_2 (2242/2260/2280) - PCIe 4.0 x4
  M.2_3 (2242/2260/2280) - PCIe 4.0 x2
• RAID: AMD RAIDXpert2 Technology:
  Ryzen 9000 Series CPUs: RAID 0/1/5/10
  Ryzen 8000 Series CPUs: RAID 0/1
  Ryzen 7000 Series CPUs: RAID 0/1/10
• Wireless: Wi-Fi 6
  1x1 Wi-Fi 6 (802.11ax)
  Supports 2.4/5GHz frequency band
  Bluetooth v5.4
• LAN: GB LAN
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x USB 10Gbps Type-C
  1 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  5 x USB 2.0

  Front:
  1 x USB 5Gbps Type-C
  4 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 1 x USB 10Gbps Type-C
  1 x USB 10Gbps Type-A
  2 x USB 5Gbps Type-A
  5 x USB 2.0
  1 x DisplayPort
  1 x HDMI
  1 x Wi-Fi module
  1 x Realtek 1Gb Ethernet
  3 x Audio jacks
  1 x BIOS FlashBack button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  1 x 4-pin AIO Pump
  4 x 4-pin Chassis Fan
  1 x 24-pin Main
  1 x 8-pin +12V CPU
  1 x 4-pin +12V CPU
  3 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x USB 5Gbps Type-C
  2 x USB 5Gbps
• .: 2 x USB 2.0
  3 x Addressable RGB Gen2
  1 x Clear CMOS
  1 x Chassis Intrusion
  1 x COM Port
  1 x Front Panel Audio
  1 x S/PDIF Out
  1 x SPI TPM (14-1 pin)
  1 x 10-1 pin System Panel
• Accessories: 2 x SATA 6Gb/s cables
  1 x ASUS Wi-Fi moving antenna
  2 x Screw packages for M.2 SSD
  1 x Quick start guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.9210 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
• #Hide#Wi-Fi: Yes (Wi-Fi)
