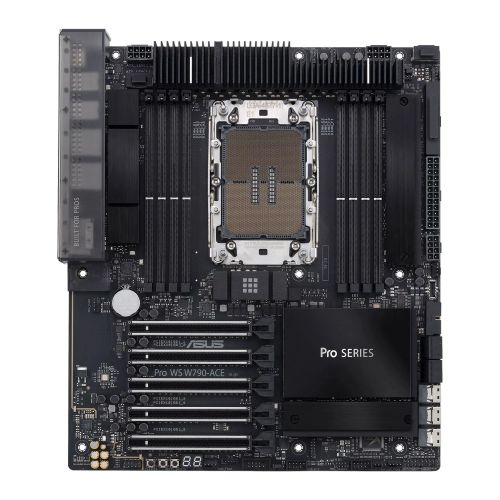

Asus PRO WS W790-ACE, Workstation, Intel W790, LGA4677, CEB, 8 DDR5, 10G & 2.5G LAN, IPMI Remote Management, SlimSAS, PCIe5, 2x M.2

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: CEB
• Socket: Intel 4677
• Chipset: Intel W790
• #Hide#DDR Type: DDR5
• CPU Support: For Xeon W-3400 and W-2400 Series Processors
  Supports Intel Turbo Boost Max Technology 3.0

  Click here for CPU support
• RAM Technology: DDR5 (Quad Channel)
• RAM Slots: 8 x DIMM
• RAM Speeds: Up to 6800(OC) ECC Registered Memory
• Maximum Memory: 2048GB
• Graphics: -
• Graphics Ports: -
• PCI/PCI Express: "5 x PCIe 5.0 x16 (supports x16, x16, x16, x0/x8, x16/x8 modes)"
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280/22110) - PCIe
  1 x M.2 (2280) - PCIe

  3 x SlimSAS ports:
  SlimSAS_1 - PCIe 3.0 x4 NVMe device
  SlimSAS_2 - PCIe 4.0 x4 or up to 4 SATA devices via a transfer cable*
  SlimSAS_3 - PCIe 4.0 x4 NVMe device

  *The cable is purchased separately
• RAID: "4 x SATA - Supports Intel Virtual RAID on CPU (Intel VROC) and Intel Volume Management Device (Intel VMD)

  Intel VROC Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. VROC HW_Key is purchased separately"
• Wireless: -
• LAN: 10GB LAN & 2.5GB LAN
• Audio: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: "1 x USB 3.2 Gen2x2 Type-C (at back)
  4 x USB 3.2 Gen2 Type-A (at back)
  2 x USB 3.2 Gen1 Type-A (at mid-board)
  12 x USB 2.0 (8 at back, 4 at mid-board)
  1 x USB 3.2 Gen2x2 Type-C front panel connector"
• Back Panel I/O Ports: 1 x USB 3.2 Gen2x2 Type-C
  4 x USB 3.2 Gen2 Type-A
  8 x USB 2.0
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  5 x Audio jacks
  1 x Optical S/PDIF out
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  5 x 4-pin Chassis Fan
  1 x W_PUMP+
  2 x 24-pin Main
  4 x 8-pin +12V
  1 x 8-pin PCIe
  2 x M.2 (Key M)
  3 x SlimSAS
  4 x SATA 6Gb/s
  1 x USB 3.2 Gen2x2 Type-C
  1 x USB 3.2 Gen1
• .: 2 x USB 2.0
  1 x BMC
  1 x COM Port
  1 x FlexKey button
  1 x Front Panel Audio
  1 x LN2 Mode jumper
  1 x ReTry button
  1 x Start button
  1 x SPI TPM (14-1pin)
  1 x 20-3 pin System Panel
• .: 1 x Thermal Sensor
  1 x VROC Key
• Accessories: 2 x SATA 6Gb/s cables
  1 x Q-connector
  1 x M.2 Rubber Package
  1 x M.2 backplate Rubber Package
  1 x ACC Express Activation Key Card
  1 x User guide
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 3.4000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 2 x LAN
• #Hide#Max LAN Speed: 10GB LAN
