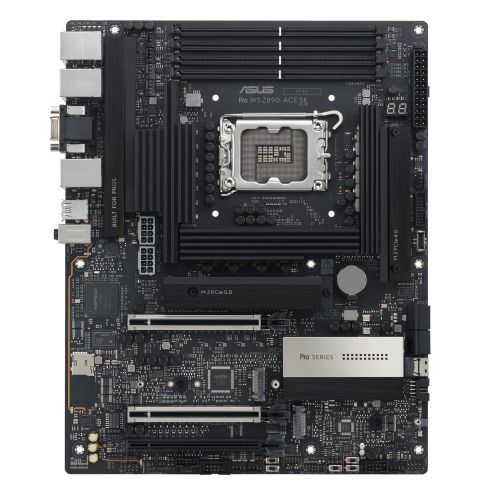

Asus PRO WS Z890-ACE SE, Workstation, Intel Z890, 1851, ATX, 4 DDR5, VGA, HDMI, TB4, 10G & 2.5G LAN, Onboard BMC, 4x M.2

Description

Specification

• Motherboard Type: Server / Workstation
• Form Factor: ATX
• Socket: Intel 1851
• Chipset: Intel Z890
• #Hide#DDR Type: DDR5
• CPU Support: Click here for CPU support
• RAM Technology: "DDR5 (Dual Channel)
  Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
  DIMM Fit
  DIMM Flex
  XMP
  ASUS AEMP III

  *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function"
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 9066+MT/s (OC)
• Maximum Memory: 256GB
• Graphics: Integrated Graphics
  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA from AST2600
  1 x HDMI
  1 x Thunderbolt 4 (USB-C) support DisplayPort and Thunderbolt video outputs
• PCI/PCI Express: Intel Core Ultra CPUs (Series 2):
  2 x PCIe 5.0 x16 (supports x16 or x8/x8 modes)

  Intel Z890 Chipset:
  1 x PCIe 4.0 x16 (supports x4 mode)
• Storage: 8 x SATA III
  4 x M.2
  SlimSAS slot*

  Intel Core Ultra CPUs (Series 2):
  M.2_1 (2260/2280) - PCIe 5.0 x4
  M.2_2 (2242/2260/2280) - PCIe 4.0 x4

  Intel Z890 Chipset:
  M.2_3 (2242/2260/2280) - PCIe 4.0 x4
  M.2_4 (2280) PCIe 4.0 x4

  *SlimSAS slot supports PCIe 4.0 x4 mode or up to 4 SATA devices via a transfer cable. The cable is purchased separately

• RAID: "Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5"
• Wireless: -
• LAN: "10GB, 2.5GB & GB LAN"
• Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
• USB Ports Supported: Rear:
  1 x Thunderbolt 4 (USB Type-C)
  1 x USB 20Gbps Type-C
  6 x USB 10Gbps Type-A

  Front:
  1 x USB 20Gbps Type-C
  2 x USB 5Gbps
  4 x USB 2.0
• Back Panel I/O Ports: 1 x Thunderbolt 4 (USB Type-C)
  1 x USB 20Gbps Type-C
  6 x USB 10Gbps Type-A
  1 x HDMI
  1 x Marvell AQtion 10Gb Ethernet
  1 x Intel 2.5Gb Ethernet
  1 x Realtek 1Gb Ethernet dedicated for AST2600
  2 x Audio jacks
  1 x BIOS FlashBack button
  1 x Clear CMOS button
• Internal I/O Connectors: 1 x 4-pin CPU Fan
  1 x 4-pin CPU OPT Fan
  5 x 4-pin Chassis Fan
  1 x W_PUMP+
  1 x 24-pin Main
  2 x 8-pin +12V CPU
  4 x M.2 (Key M)
  4 x SATA 6Gb/s
  1 x SlimSAS
  1 x USB 20Gbps Type-C
  1 x USB 5Gbps
  2 x USB 2.0
• .: 1 x Chassis Intrusion
  1 x COM Port
  1 x CPU Over voltage
  1 x Front Panel Audio
  1 x 10-1 pin Front System Panel
  1 x Thermal Sensor
  1 x Thunderbolt (USB4)
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 1.8000 kg
• Warranty: 3 Years
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 3 x LAN
• #Hide#Max LAN Speed: 10GB LAN
