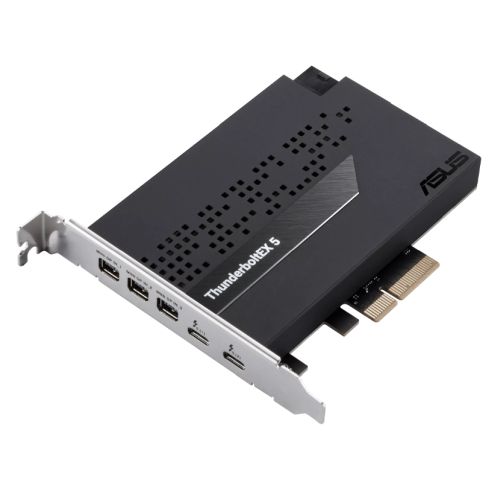

Asus ThunderboltEX 5 Expansion Card, PCIe 4.0, 2x Thunderbolt 5 (USB-C), 3x Mini DisplayPort In, Up to 120Gbps Bandwidth

Description

Specification

• Type: Thunderbolt Card
• Ports: 2 x USB Type-C ports
  - Up to 120Gbps for Thunderbolt and USB4 devices
  - USB Type-C _1 & _2 support a total of 130W with Flexible FastCharge
  - USB Type-C power delivery output: max. 20V/4.8A
  3 x mini DisplayPort IN ports
• Transfer Rate(s): Up to 120Gbps of bandwidth for superfast data transfers and video output
• Host Interface(s): PCIe 4.0 x4
• Internal Interfaces: 1 x 6-pin PCIe power connector for Flexible FastCharge function
  1 x USB 2.0 header
  1 x Thunderbolt header
• Additional Features: See Overview
• Dimensions: 8.89 x 11.95 cm
• Package Type: Retail
• Package Weight: To be confirmed
• Warranty: 1 Year
• #Hide#Host Interface: PCI Express
