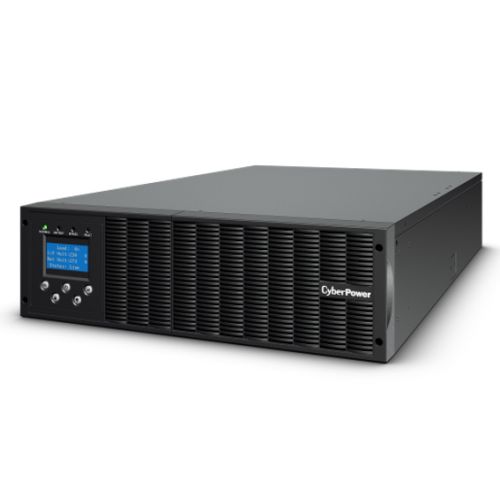

CyberPower Online XL Smart App 10,000VA Double Conversion 3U Rack/Tower UPS, 9000W, LCD Display, 1x Hardwire Terminal Block, Ext. Battery Module

Description

Specification

• Type: Rackmountable UPS
• UPS Topology: Online Double Conversion
• Maximum Capacity: "10,000VA / 9000W"
• #Hide#Capacity (VA): "10,000 VA"
• #Hide#Capacity (Watts): 9000 W
• Battery Type: -
• Typical Protection: Surge Suppression: 445 Joules
  EMI/RFI Filtration
• Inversion: Pure Sine Wave
• Transfer Time: 0 ms
• Battery Protection: "Overload Protection:
  Internal Current Limiting, Circuit Breaker, Fuse

  Overload Protection (Line Mode):
  105~125% Load for 10 min, 125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec

  Overload Protection (Battery Mode):
  105~125% Load for 2 min, 125~150% Load for 30 sec, >150% Load for 1 sec

  Overload Protection (Bypass Mode):
  125~150% Load for 1 min, 150~170% Load for 10 sec, >170% Load for 1 sec"
• Input Voltage: Nominal Input Voltage: 230 Vac
  Input Voltage Range: 110 ~ 276 Vac

  Adjustable Voltage Range:
  0~80% Load for 110 ~ 276 Vac
  0~100% Load for 176 ~ 276 Vac

• Output Voltage: 208 ± 1 %
  220 ± 1 %
  230 ± 1 %
  240 ± 1 %
• Recharge Time: -
• Runtime: -
• Interfaces: Serial Port
  USB Port
  SNMP/HTTP Network Slot
  EPO Port
  Input Terminal Block
  Output Terminal Block
  Parallel Port
• Visual Indicators: "LCD Panel:
  Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log

  LCD Setting & Control:
  Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting

  LED Indicators:
  Line Mode, Battery Mode, Bypass Mode, UPS Fault
  "
• Audible Indicators: "Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault"
• Environment: "Operating Temperature: 32 ~ 104°F
  Operating Temperature: 0 ~ 40 °C
  Operating Relative Humidity (Non-condensing): 0 ~ 90 %
  Operating Elevation: <1000, Load Derated 1% per 100m from 1000m and 2000m
  Storage Temperature: 5 ~ 113 °F
  Storage Temperature: -15 ~ 45 °C
  Storage Relative Humidity (Non-condensing): 0 ~ 95%
  Storage Elevation: 0-49,213 feet (0-15,000 meters)
  Online Thermal Dissipation: 2672 BTU/hr
  Audible Noise at 1.5M from Surface of Unit: 60 dBA"
• Dimensions: (WxHxD) 551 x 283 x 867 mm
• Weight: 28.3 kg
• Software: PowerPanel Business (Recommended)
• Additional Features: See Overview
• Accessories: Rackmount Rail
  Parallel Port Cover Plate
  Terminal Cover
  Terminal Splices
  Screw Kit
  USB Cable
• Package Type: Retail
• Package Weight: 28.3000 kg
• Warranty: 2 Years - direct with CyberPower
