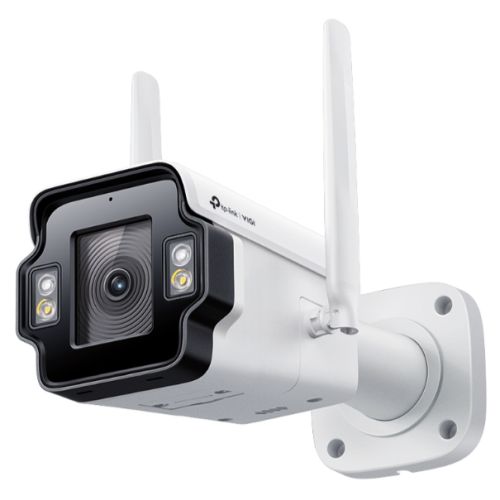

TP-LINK (InSight S345-4G) VIGI 4MP Outdoor Full-Colour 4G Bullet Network Camera w/ 4mm Lens, 4G Mobile Networking, 3x LAN, AI Detection/Classification, Two-Way Audio

Description

Specification

• #Hide#Form Factor: Bullet
• Suitable for Outdoor: Yes
• Wired/Wireless: Wired/Wireless
• Interface(s): 3 x RJ45 10/100M LAN Ports
  DC Power Port
  Memory Card Slot (MicroSD Card up to 512GB)
  Built-in Nano-SIM Card Slot
• Image Sensor: 1/2.7” Progressive Scan CMOS
• Resolution: "Main Stream:
  2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720

  Sub-Stream:
  848x480, 704x576, 640x480, 640x360, 352x288, 320x240"
• Frame Rate: "Main Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  Sub-Stream:
  50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
  60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

  Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps"
• Video Compression: Main Stream:
  H.265+/H.265/H.264+/H.264

  Sub-Stream:
  H.265/H.264
• Lens: 4mm Fixed Focal Lens
  Lens Mount: M12
  Aperture: F1.6

  DORI Distance:
  Detect: 80 m (262 ft)
  Observe: 33 m (109 ft)
  Recognize: 16 m (52 ft)
  Identify: 8 m (26 ft)
• Viewing Angle: Horizontal FOV: 80.4°
  Vertical FOV: 41.8°
  Diagonal FOV: 98.7°
• Pan/Tilt/Rotation: Pan: 0° to 360°
  Tilt: 0° to 90°
  Rotation: 0° to 360°
• Day/Night Mechanism: IR Cut Filter
  Day/Night Switch: Unified/ Scheduled/ Auto
• IR Working Distance: IR LED Quantity: 2
  Range: 50m
  Wavelength: 850nm
• Minimum Illumination: "0.005 Lux; 0 Lux with IR/White Light"
• Video Streaming: Main Stream
  Sub-Stream
• Image Settings: Mirror
  Brightness
  Contrast
  Saturation
  Sharpness
  Exposure
  WDR
  White Balance
  Prevent Overexposure to Infrared Light
• Audio Features: Two-Way Audio
  Built-in Microphone
  Built-in Speaker
  Audio Compression
  Audio Sampling Rate: 8KHz
  Environment Noise Filtering
  Audio Bit Rate: 64 Kbps(G.711 alaw)
• Alarm & Event Management: "Smart Event Detection:
  Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned, Object Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change

  Basic Event:
  Motion
  Video Tampering
  Exception (Illegal Login)

  Alarm Linkage:
  Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing, Upload to FTP, Send to Alarm Server, Email Alarm"
• Network: "Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP

  ONVIF: Yes

  API: Open Network Video Interface (Profile S/G/T)

  Simultaneous Live View: 3 Main Streams & 3 Sub-Streams

  Cloud: Yes"
• Wireless Features: "4G:
  Standard: LTE-TDD/LTE-FDD/WCDMA
  Nano SIM
  Category: 4
  Uplink: 50 Mbps, Downlink: 150 Mbps"
• Security: "Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication"
• Management: "VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client"
• Power Supply: "12V DC/1 A, 5.5 mm Coaxial Power Plug"
• Additional Features: See Overview
• Weight/Dimensions: 1.09 kg
  (LxWxH) 256 x 122 x 101 mm (excluding antennas)
• Environment: IP66 Waterproof
  Operating Temperature: -30–60 °C
  Storage Temperature: -40–60 °C
  Operating Humidity: 95% or Less (Non-Condensing)
  Storage Humidity: 95% or Less (Non-Condensing)
• Package Contents: VIGI Network Camera
  Quick Start Guide
  Waterproof Cable Attachments
  Mounting Accessories
  Power Adapter
• Package Weight: 1.5800 kg
• Warranty: 5 Years
• #Hide#Resolution: 4MP
